SVBONY SV205 Planetary Camera 1.25'' CMOS IMX415 Electronic Telescope Eyepiece 8MP USB3.0 for Astrophotography
Svbony SV205 Astronomy Planetary Camera review
https://www.youtube.com/watch?v=vL97eh0ANnc
Author:Astrotivissa
SV205 Color Astronomy Camera 8MP USB3.0
USB 3.0 & Plug and Play
Dark Light Compensation
8MP: 3264x2448
MJPG/YUV Format to Choose
1.25' Adapter Barrel
IR-650 Cut
Works with Telescope/ Spotting scope/ Microscope
The SV205 color camera is a popular choice for beginners due to its affordable price and solar system photography capabilities. It supports real-time dynamic observation and crystal clear image.
Plug and Play
*SV205 astronomy camera can`t focus automatically, and you need to focus your telescope to see a clear image.
Plug and play without driver, easier to use. USB 3.0 is much faster than USB 2.0. And the camera supports a real-time dynamic observation and crystal clear image. The photosensitive area of the IMX415 is 1/3.2 inch, and the unit area per pixel is 1.4 microns. The sensitivity of the IMX415 has been significantly improved.
Software Download
Download Sharpcap Capture for windows system;
Download AstroDMx Capture for Linux system;
Download USB Camera for Android system;
Dark Light Compensation
The image processor uses dark light compensation technology to greatly improve the telescope camera's image clarity in low light conditions.
8MP: 3264x2448
When enter the sharpcap software, all camera settings are automatically. You may see the picture is out of color balance or maybe a little blurry. You need to choose a resolution (8MP 3264×2448 is most clear), then choose the YUV video format. This is the best image resolution.
MJPG/YUV Format to Choose
In MJPG video format, you can record video quickly and the frame rate up to 30FPS at 2K resolution 1920x1080, which is extremely smooth during preview and shooting. If you want a high quality image, please choose YUV uncompressed video format. The speed will be 15FPS per second at 3264*2448 resolution.

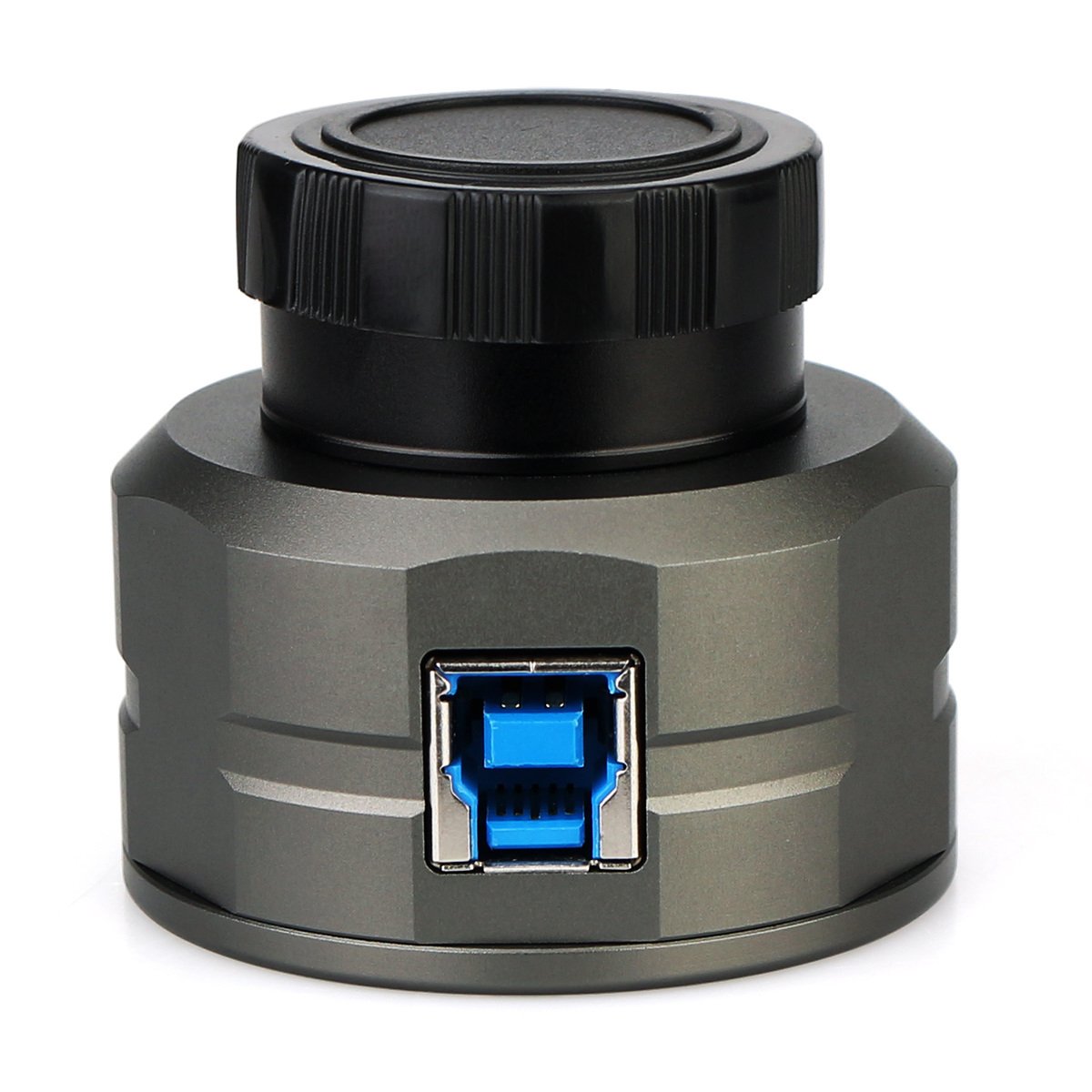

1.25" Adapter Barrel
The 1.25" Adapter Barrel is available for standard 1.25' filters and other 1.25' accessories. SV205 camera just replaces the eyepiece, for electronically enhanced viewing, or astrophotography. It would NOT work with most finder scopes that do not have a removeable eyepiece, or one that has an eyepiece smaller than 1.25".

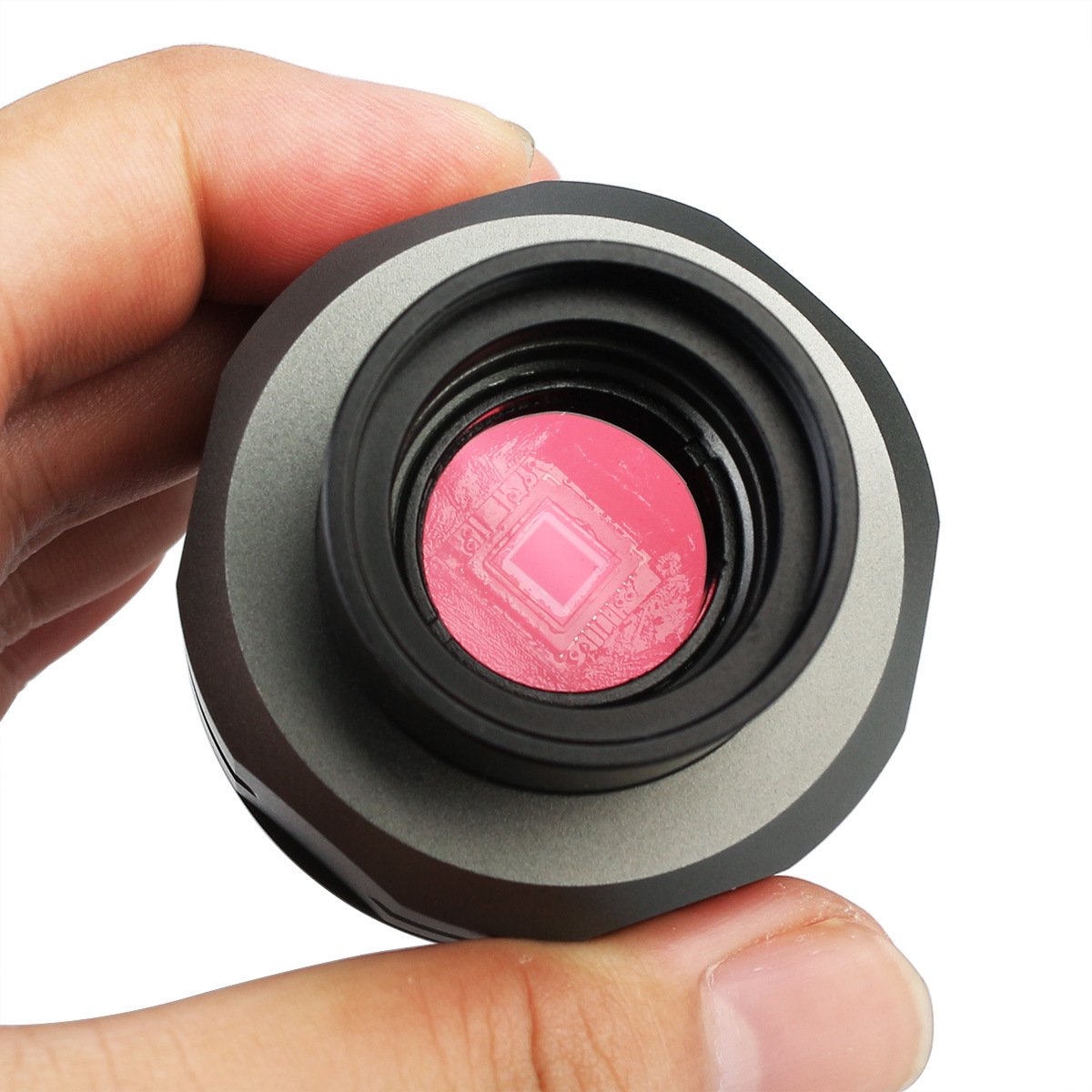

IR-650 Filter
The IR650 filter, high transmittance of visible light, infrared transmittance low. The human eye cannot detect the infrared part of filter, and can adjust the scenery within react to the color of the image rendering color to achieve the best visual effect, greatly improve the image quality.
High Quality
Operating Temperature: 0°C~50°C
Storage Temperature: -10°C~60°C
Working Humidity: 30%-80%
Storage Humidity: 20%-90%
Used as a Guiding Camera
*The camera can not expose for a long time, and is not really sensitive, so it is better to guide brighter objects.
Used as Planetary Camera
*Suited for planetary, lunar and solar photography.
Connect the Spotting Scope (SV28) and Microscope.
Note:
Can SV205 camera work with smartphone?
First, you can download "USB Camera" from my smartphone [APP Store] and install it. This is a particularly good application because it presents the main control of the camera so that the correct exposure, etc. is set. It works with UVC webcams. Check the icon with the USB camera.
The SV205 camera was placed at the telescope focus of a refractor and was connected to the smartphone. Also need a USB 3.0 to type C connector. Then the SV105 camera could connect to smartphone now.
A drop-down menu allows the selection of the camera controls which can be hidden. People could set all the settings they want. USB Camera can capture mp4 movies/videos or still images.
Buyers Show
Saturn and Jupiter
Powerseeker 114eq telescope with a sv205 planetary camera and a barlow 2x
Processing softwares: Pipp, autostakkert and registax6.
Author:Micael Mike
Author:Stanislav Rudenko
Sky-Watcher BK 707AZ2 + SV205 + telescope
Picture was taken in Budapest, Hungary from 21:55 to 22:05 UTC. It is a mosaic of 6 pictures processed by Sharpcap, Autostakkert and Fitswork. Equipment: Telescope ED 80/600, AZGTi mount, Svbony SV205 camera.
Author:Tamás Fehér
